Hot pressed B4C bulletproof ceramics are used for NIJ IV bulletproof, helicopter protection, and tank armor. This product adopts hot pressing sintering technology, which can be made into blocks of different sizes such as squares, hexagons, triangles, etc. according to needs, and spliced into bulletproof boards. It can also be directly made into large-sized curved or flat whole boards. Hot pressed B4C ceramics have an extremely high density (close to 100%) and a Vickers hardness typically of 3100HV, making them a very high-quality bulletproof material.

The product can be made into flat and curved surfaces, with a customizable size range of 10-500mm and a customizable thickness range of 0.2-80mm.

Product detailed description:

Compared to several bulletproof ceramics widely used in protective equipment, boron carbide (B4C) ceramic has the highest hardness and lowest density, making it the most ideal armor ceramic material in terms of performance. With the increasing demand for lightweight and high protection applications in human protective equipment, the industrialization of B4C ceramics has been smoothly promoted, and B4C has been applied as one of the mainstream ceramic materials for preparing bulletproof vest inserts.

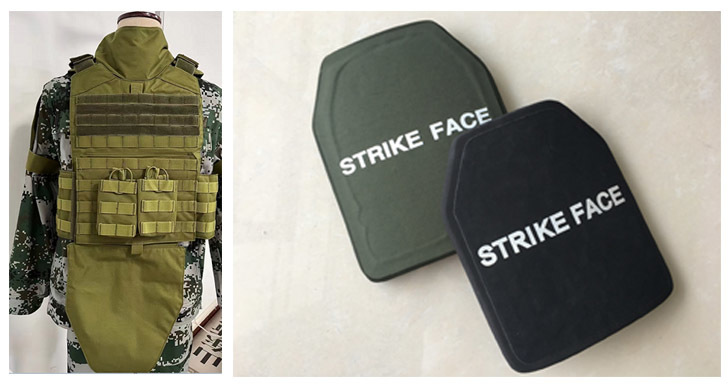

High quality bulletproof inserts serve as reinforced protective components for bulletproof vests, consisting of B4C ceramic plates and ultra-high molecular weight polyethylene fiber composite material plates. The basic protection principle is to use B4C bulletproof ceramics to passivate and corrode bullets, and then use fiber composite materials to absorb residual impact kinetic energy. According to different application environments and protection requirements, B4C ceramic plug plates are divided into two types: multi curved integral ceramic plates and single curved small ceramic splicing plates.

In terms of ceramic production, the company has two processes: pressureless sintering and hot pressing sintering. Products with different processes have different advantages and are suitable for different scenarios. Pressure free sintered ceramics have high cost-effectiveness and are suitable for large-scale production. They are suitable for use as bulletproof materials, seals, nozzles, wear-resistant and heat-resistant materials, as well as common nuclear power materials. Ceramics produced by hot pressing sintering are suitable for small batch production and can be made into larger sizes. They are suitable for use as nuclear power core materials, semiconductor materials, target materials, bulletproof materials, etc.


Product Application

Bulletproof vest / Bulletproof armor / Tank protection / Helicopter protection

Company attaches great importance to research and development and the transformation of scientific and technological achievements, the company has invested a large amount of money to carry out technological innovation, new product development activities, and set up a research and development department, responsible for the company's research and development activities to carry out the implementation. In order to further improve the company's research and development management system, improve the efficiency and management level of R & D, the company has formulated a series of rules and systems, through the implementation of these systems, the company has obtained and successfully transformed a series of scientific and technological achievements.

The company has successively passed certifications for quality management system, environmental management system, occupational health and safety management system, and weapon and equipment quality management system. It has multiple independent intellectual property rights and high-tech in the field of military civilian integration, and is dedicated to providing customers with high-quality products and services.
